Electronic Door Locks & Locking Devices  (1,595)

Electric Locks, Fail-Open, Sliding, Swing door open type, Stainless Steel, Timber, Metal, UPVC, 12 V DC

Holding Force - 1500kg High Physical Security Releases under Side Load Pressure Dual Monitoring Magnets fitted with EW pressure sensors are able to send an alarm before access forced open. Also fitted with buzzer.

11 button keypad 8 digit Master and Sub-Master Code 4 digit User Code 6 digit Technician Code Right hand Up to 50,000 operations from 2 x AAA batteries Battery override Auto unlock feature Audible keypad IP54 rated when fitted with gasket

Surface fixing magnet and armature, for metal/timber frames

Accessories: "L" and "Z" brackets. Glass door kit available.

Create codes for short, medium and long term Web based NetCode generation Send generated codes via email or SMS Three modes of operation - NetCode, Private, Public Up to 15,000 operations from 2 x AAA batteries Battery override No WiFi connection required 11 button keypad Master, Sub-Master, User and Technician Codes IP55 rated when fitted with gasket

11 button keypad 8 digit Master and Sub-Master Code 4 digit User Code 6 digit Technician Code Left hand and right hand Up to 15,000 operations from 2 x AAA batteries Battery override IP55 rated when fitted with gasket

The Alpro Hardware Division of IEC Limited has announced the release of the new Alpro EB501 mini solenoid bolt. This innovative product allows for both remote access and exit control of most timber, metal and UPVC doors. It is also suitable for sliding or swing, single or double action operations. It can be fitted in the frame or in the door and comes complete with plug in LED bolt indicator as standard. It is also suitable for narrow profile joinery cabinets, lockers and showcases. Construction of the bolt is from stainless steel, complete with a 12mm diameter bolt affecting a 12mm throw. A strike plate completes the secure locking function. The EB501 is further enhanced by a stainless steel dress plate to cover the brushed aluminium faceplate. The bolt has a continuously rated solenoid, fully protected against transients and reverse polarity.  Monitoring is by door position switch and bolt position indicator. The auto relock function can be set for 0, 3, 6 or 9 seconds. The bolt carries the requisite CE approval. Commenting on the release of this new product, Keith Parry, Alpro's Divisional Sales Manager, says: "Once again Alpro are demonstrating to the marketplace, their core belief of bringing innovation and quality to their customer base with the introduction of this new addition to the range." Alpro products are available exclusively in the UK from all major security product distributors.

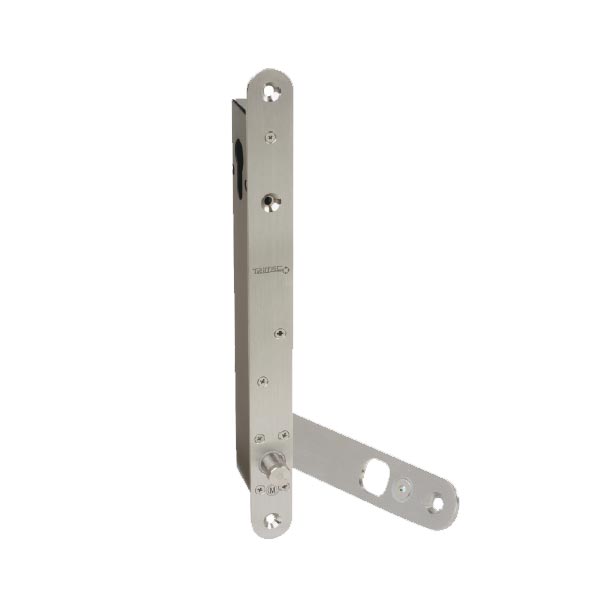

The Trimec deadlocking bolt, key override model from IEC offers the same functionality as the standard TB25 with provision for a Euro profile cylinder as a means of mechanical override.  The ultra-slim design of the TB25KO enables fixing into very narrow sections.  In addition, an advanced microprocessor module provides power reduction allowing continuous operation without heat generation as well as automatic voltage regulation, dual monitoring and access control features.  Other key features include: High physical security - holding force of 1,000 kg, automatic deadlocking bolt throw of 16 mm Access Control features - Fail Secure, multiple unlock - Fail Unlocked, multiple relock - Anti Tailgate - Auto relock - Anti tamper wired Robust construction - all stainless steel bolt, linkages, springs and faceplate Maintained key override - standard Euro profile cylinder, operation from both sides Versatile installation design - high security locking for single or double action, hinged or sliding door, timber or metal, vertical or horizontal mounting Approvals - CE - BS EN 50081-1 and BS EN 50082-1 Quality assured - 5 year guarantee

Mortice fixing magnet and armature, door position switch

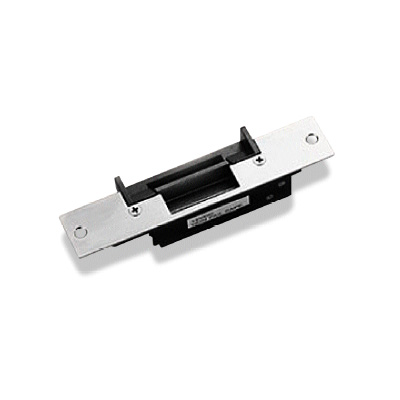

PCSC ES125 electric lock allows the door to be opened without retracting the latchbolt. This occurs by the release of the electric strike lip (sometimes called a keeper or gate). When the door closes the beveled latchbolt rides over the lip and falls into the strike pocket. A door can be set either as Fail Safe (loss of electrical power opens the door) or Fail Secure (loss of electrical power locks the door).

Wireless Net2 access control Can be fitted in minutes Reports back to the Net2 server in real time Full battery management system Euro profile lock case compatibility Key override option

Fixed jaw strike Fail secure EURO style strike Left and right handed Built-in Metal Oxide Varistor to protect against electrical spikes

Light to medium duty. Continuous rated. Grey finish.

Light to medium duty. Continuously rated. Grey finish.

Continuously rated grey.

Light to medium duty

Light to medium duty. Grey finish.

Unlatched. Light to medium duty. Grey finish.

Light to medium duty. Grey finish.

Grey finish. Also available in brass A9524VB.

Light to medium duty. Grey finish.

Flush magnet and surface armature

With C/O contacts, 24v available, specialised strikes for glass doors

Wireless Net2 access control Can be fitted in minutes Reports back to the Net2 server in real time Full battery management system Euro profile lock case compatibility Key override option

With C/O Contacts, 24v available, specialised strikes for glass doors. Available in contacted version of A12.

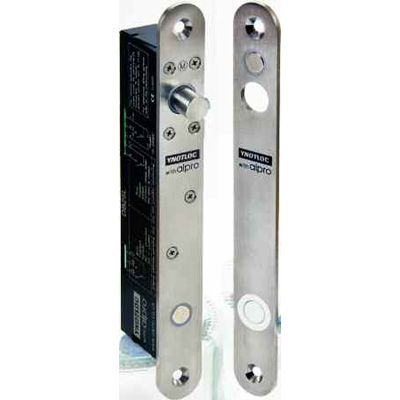

The Alpro DB25L incorporates a unique latching device that is a world first in electronic deadbolts. Door alignment problems vanish with the innovative design which ensures the correct positioning of the lock and strike every time. Incorporating access control functions, two monitors and the highest quality componentry.

Electromagnetic Locks, Hall-Effect, 300kg, Single Magnet, 266 x 44 x 33

Having less features than the TB25 this dropbolt was designed for the cost conscious and is available in the Power to Lock configuration only.  There are no onboard electronics and unlock and relock times must be controlled by the access control system.  The standard bolt (TB32-38) is supplied with a 38 mm wide faceplate however a 32mm faceplate is available as an option (TB32).

Symmetrical fail secure electric strike with T290 faceplate Holding force 3250 N Terminal block 4 mm adjustable roller Dual voltage Built-in back EMF protection

Electromagnetic Locks, Unmonitored, 300kg, Single Magnet, 266 x 44 x 33

Electromagnetic Locks, Unmonitored, 600kg, Single Magnet, 266 x 67 x 41

in 540mm housing

in 540mm housing

Electromagnetic Locks, Unmonitored, 600kg, Double Magnet, 533 x 67 x 41

Electromagnetic Locks, Hall-Effect, 600kg, Single Magnet, 266 x 67 x 41

IEC, the exclusive UK distributor of electric strike market leader TRIMEC, have announced the release of significant new variations to their principal product, the TRIMEC ES110 electric strike.  Regarded within the market as the generic brand for high quality electric strikes, TRIMEC have introduced new slim long faceplate versions of the ES110, enabling easier installation to narrow doors and frames.The TRIMEC ES110 has enjoyed market leadership for some years, owing to its rapid changeover (Fail Open / Fail Secure) capability, high holding force using hardened locking pins in shear, jaw depth, low current consumption and attractive warranty.  Unfortunately, some applications have been unable to enjoy the benefits of the TRIMEC ES110 – primarily due to doors and frames being slim in design.The versions and options of the TRIMEC ES110 include:lipless model IP56 weather resistant model push-in extension lips rebates plates sash lock faceplates AC/DC rectifier sounder module PAS 24 Standard new slim long faceplate

Fixed jaw strike Fail secure EURO style strike Left and right handed Continuous rated Built-in Metal Oxide Varistor to protect against electrical spikes

Chrome version available. Grey finish.

new style
