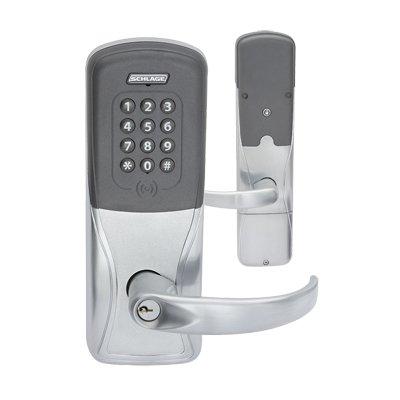

Schlage (Allegion) AD-400 Networked Wireless Lock
Technical Specification
- Make: Schlage (Allegion)
- Model code: AD-400
- Lock Type: Electric Locks
- Monitoring Status: Monitored
- Door Type: Exterior / Interior
The AD-400 is a wireless electronic lock designed to be modular and provide more. More options to choose from, more built-in functionality, more credential options, and more compatibility with access control systems. Its patented modular design allows the lock to be customized to fit the current application and adapt to meet future technology needs without removing it from the door. The open architecture design allows it to be integrated into over 40 leading physical access control systems through PACS Alliance program. This enables customers to choose the system that best fits their requirements. AD-400 electronic locks communicate securely using 900 MHz wireless technology which operates independent of the IT network and has a longer communication range. Available as cylindrical, mortise, mortise deadbolt or exit trim, the AD Series features built-in access control sensors and is compatible with a wide range of credential technologies. The AD-400 can work in the same system as other Schlage wired and wireless access control devices to meet the requirements of any application.
Read more| Make | Schlage (Allegion) |
|---|---|
| Manufacturer | Allegion plc |
| Category | Access control products >Electronic locking devices |
| Model code | AD-400 |
|
Lock Type: Electric Locks Monitoring Status: Monitored Door Type: Exterior / Interior Backset mm: Standard: 2 3⁄4", Optional: 2 3⁄8", 3 3⁄4", 5" Bolt Throw mm: 1 ⁄2" ~ 3⁄4" Handing: Handed to order, field reversible |
|
| Environmental Specifications |
Operating Temperature oC: Exterior: -35 ~ +66 C (-31 ~ +151 F) Operating Humidity %: 0 - 100% non-condensing |
| Electrical Specifications | Voltage: 4 V DC ~ 26 V DC |
| Additional info |
The AD-400 is a wireless electronic lock designed to be modular and provide more. More options to choose from, more built-in functionality, more credential options, and more compatibility with access control systems. Its patented modular design allows the lock to be customized to fit the current application and adapt to meet future technology needs without removing it from the door. The open architecture design allows it to be integrated into over 40 leading physical access control systems through PACS Alliance program. This enables customers to choose the system that best fits their requirements. AD-400 electronic locks communicate securely using 900 MHz wireless technology which operates independent of the IT network and has a longer communication range. Available as cylindrical, mortise, mortise deadbolt or exit trim, the AD Series features built-in access control sensors and is compatible with a wide range of credential technologies. The AD-400 can work in the same system as other Schlage wired and wireless access control devices to meet the requirements of any application. |
